RPCB - PACKING CONVEYOR BELT WITH DRIVE - RADHE PHARMA MACHINERY APPLICATION For printing, Secondary packing of Bottles / Products from the Labeling / Blister / Strip machine. TECHNICAL SPECIFICATION Dimension : As per requirements (L) x 830 mm (W) x 910 mm (H) Power : 0.5 H.P. 50 Hz UNIQUE FEATURES - Fully stainless steel body. - Tailor made to suit specific requirement. - No maintenance OPTIONAL A.C. Drive for speed control.

RVBI-100 ONLINE VISUAL BOTTLE INSPECTION MACHINE - RADHE PHARMA MACHINERY APPLICATION To check for any particles in the liquid filled sealed & breakage of bottles. TECHNICAL SPECIFICATION Available in four (2x2, Two side seated) and six (3x2, Two side seated) Operator Model Power 0.5 H.P. UNIQUE FEATURES - Direct gear drive. - Complete stainless steel finish machine. - Vibration free construction. - Adjustable height of conveyor belt to align with other machine. OPTIONAL - A.C. Drive for speed control.

RACP-150 AUTOMATIC MEASURING CUP PLACEMENT AND PRESSING MACHINE - RADHE PHARMA MACHINERY APPLICATION To place measuring cups on syrup bottles, also useful for cap pressing system for various type of other plastic caps with sealing ring. TECHNICAL SPECIFICATION Speed - 3500 to 9000 container / hour Power - 0.75 H.P. 3 Phase, 415 Volts Dimension - 1800 mm (L) x 850 mm (W) x 1500 mm (H) UNIQUE FEATURES Rigid & Vibration free construction for trouble free operation and performance. No bottle no cup system. Can use online with dry syrup liquid line or any other filling line.

RATT-30 STAINLESS STEEL TURN TABLE - RADHE PHARMA MACHINERY APPLICATION Suitable to fit with automatic filling line machines. TECHINCAL SPECIFICATION Tabel Size (Diameter) - 30” 36” 42” Power - 0.5 H.P. 0.5 H.P. 1 H.P. UNIQUE FEATURES - Fully stainless steel covering. - Less maintenance.

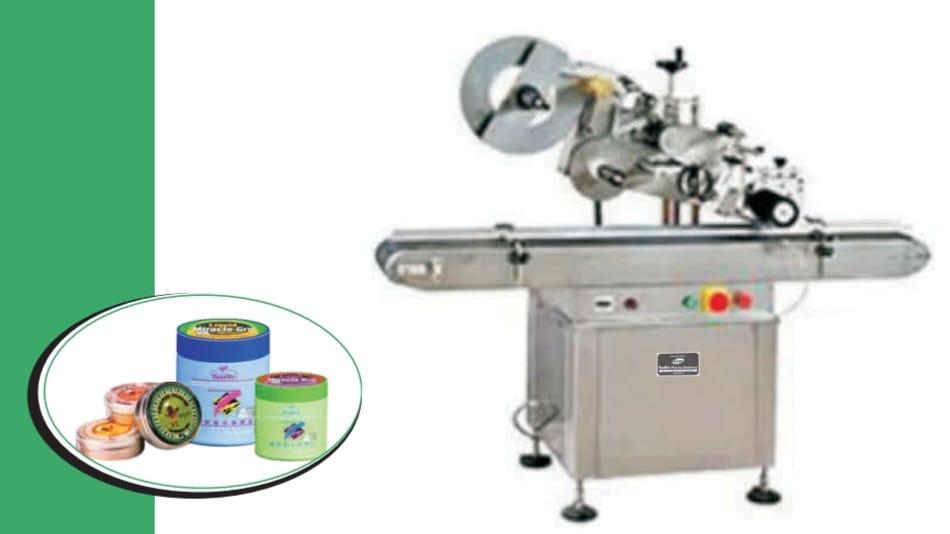

RSL-150 AUTOMATIC TOP & SIDE STICKER LABELING MACHINE - RADHE PHARMA MACHINERY APPLICATION To apply sticker labels on top & side of products like Bottles / Cartons / Batteries square containers etc. TECHNICAL SPECIFICATION Speed - Up to 120 container per minute depends up on container size and labels size. Power - 0.5 H.P. Dimension - 1835 mm (L) x 870 mm (W) x 1450 mm (H) UNIQUE FEATURES - No label data input require for any label size. - No change parts for label size. - Virtually maintenance free machine. - Fully stainless steel covering. - A.C. Drive for speed control. - In built digital counter. OPTIONAL - On line batch coding machine.

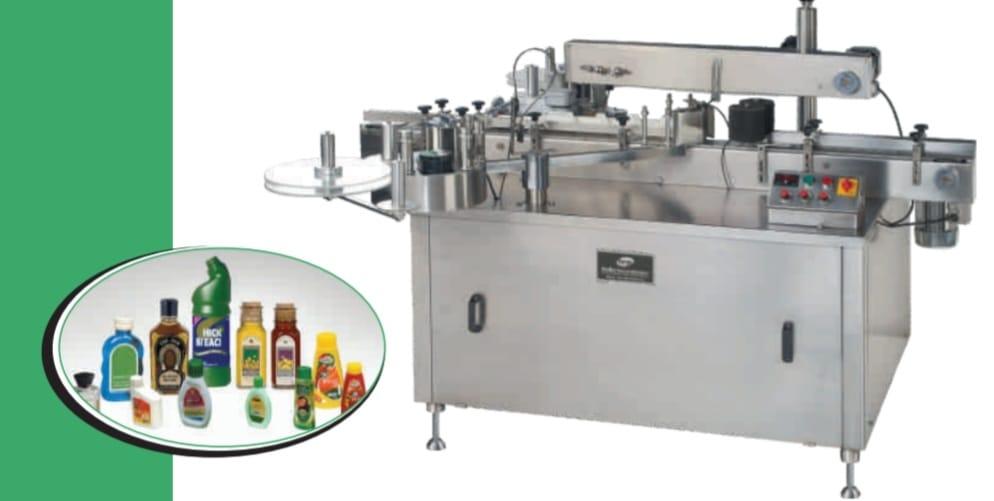

RSL-150 AUTOMATIC DOUBLE SIDE STICKER LABELING MACHINE - RADHE PHARMA MACHINERY APPLICATION To apply sticker labels on both side of Flat / Square / Oval Shape containers. Like Shampoo, Hair Oil, Mouth Wash, cleaner, Engine Oil, Lotions etc. TECHNICAL SPECIFICATION Speed - Up to 120 container per minute depends on bottle size and labels size. Power - 0.5 H.P. Dimension - 1835 mm (L) x 1300 mm (W) x 1450 mm (H) UNIQUE FEATURES - No label data input require for any label size. - No change parts for label size. - Virtually maintenance free machine. - Fully stainless steel covering. - A.C. Drive for speed control. - In built digital counter. - Along with top holding mechanism OPTIONAL - On line batch coding machine.

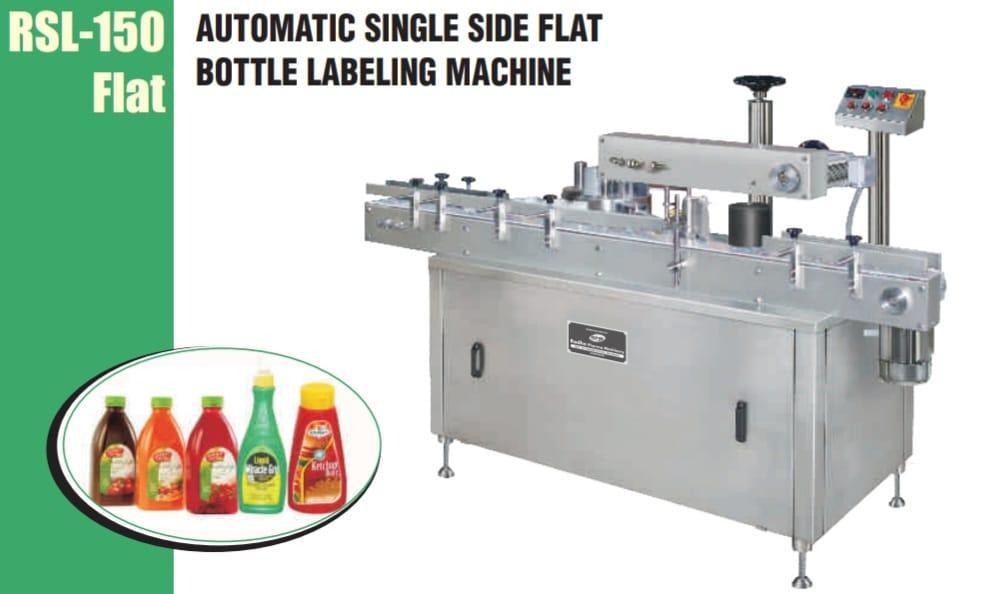

RSL-150 AUTOMATIC SINGLE SIDE FLAT BOTTLE LABELING MACHINE - RADHE PHARMA MACHINERY APPLICATION To apply sticker labels on single side of Flat, Square, Oval shape of container like shampoo bottles, Hair Oil, Lotions etc. TECHNICAL SPECIFICATION Speed - Up to 150 container per minute depends upto product size and label size Power - 0.5 H.P. Dimension - 1835 mm (L) x 870 mm (W) x 1450 mm (H) UNIQUE FEATURES - No label data input require for any label size. - No change parts for label size. - Virtually maintenance free machine. - Fully stainless steel covering. - A.C. Drive for speed control. - In built digital counter. - Along with top holding mechanism OPTIONAL On line batch coding machine.

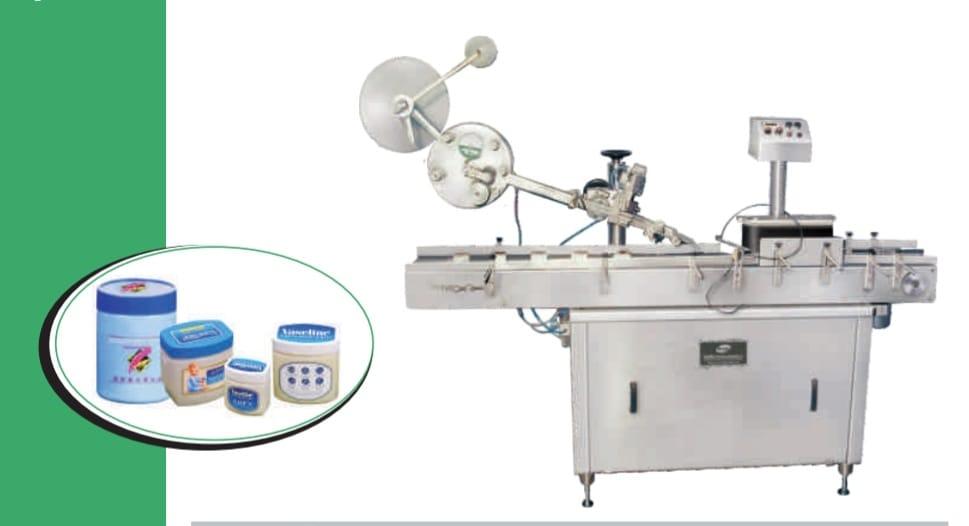

RSL-150 AUTOMATIC TOP STICKER LABELING MACHINE - RADHE PHARMA MACHINERY APPLICATION To apply sticker labels on the top of products like bottles Cartons / Cd’s / Batteries / Cassette’s / I.V.Bottles / Blister Pack’s / Pouches / Food Products / Bath Soap etc. TECHNICAL SPECIFICATION Speed - Up to 150 products per minute depends upon products size and label size. Power - 0.5 H.P. Dimension -1835 mm (L) x 550 mm (W) x 1450 mm (H) UNIQUE FEATURES - No label data input require for any label size. - No change parts for label size. - Virtually maintenance free machine. - Fully stainless steel covering. - A.C. Drive for speed control. - In built digital counter. OPTIONAL On line batch coding machine.

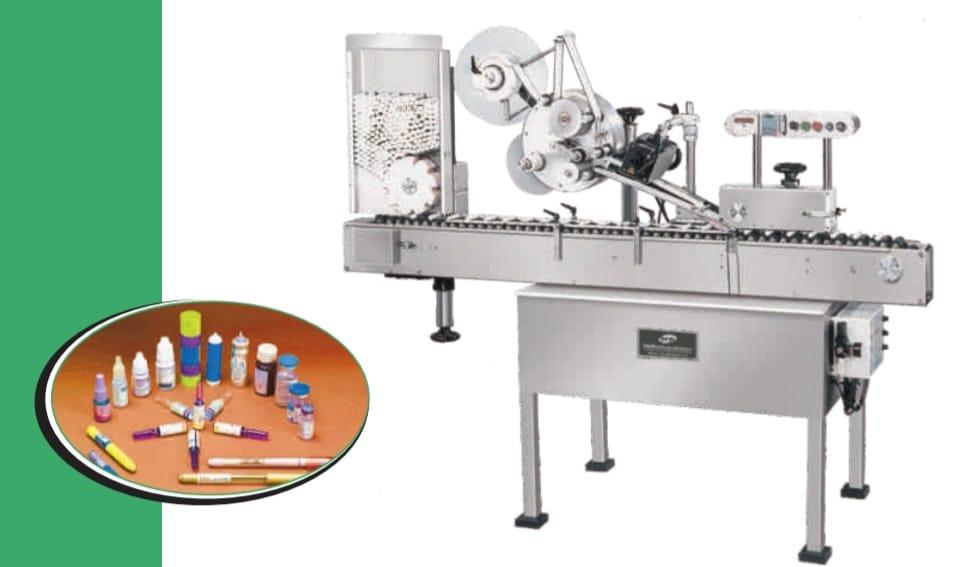

RHSL-150 AUTOMATIC HORIZONTAL STICKER LABELING MACHINE - RADHE PHARMA MACHINERY APPLICATION To apply sticker labels on vertically un stable containers Like, Vials, Ampules, Crayons, inhalers, glue stick etc. TECHNICAL SPECIFICATION Speed - Up to 150 labels per minute (Depending on product size and label size) Power - 0.5 H.P. Dimension - 1825 mm (L) x 550 mm (W) x 1550 mm(H) UNIQUE FEATURES - No label data input require for any label size. - No change parts for label size. - Virtually maintenance free machine. - Fully stainless steel covering. - A.C. Drive for speed control. - In built digital counter. - With auto feeder hoper mechanism. OPTIONAL On line batch coding machine. Auto feeder hopper mechanism.

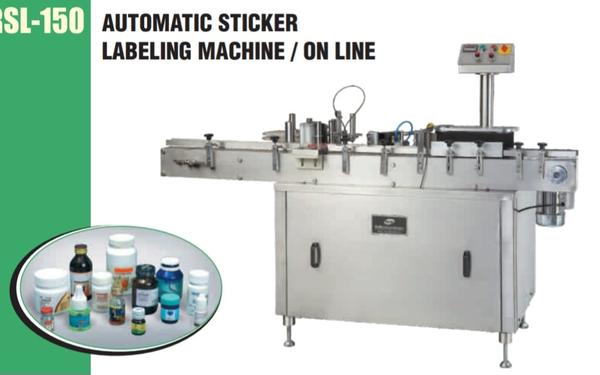

RSL-150 AUTOMATIC STICKER LABELING MACHINE / ON LINE - RADHE PHARMA MACHINERY APPLICATION To apply sticker labels on round shape of container. TECHNICAL SPECIFICATION Speed - Up to 150 labels per minute (Depending on product size and label size) Power - 0.5 H.P. Dimension - 1835 mm (L) x 870 mm (W) x 1450 mm (H) Container Size - O/ 22 mm to O/ 100 mm diameter Label Size - Length : 30mm to 180mm Width : 16mm to 90mm UNIQUE FEATURES - No label data input require for any label size. - No change parts required. - Virtually maintenance free machine. - Fully stainless steel covering. - A.C. Drive for speed control. - In built digital counter. OPTIONAL - Batch coding machine. - Turn table (Un scrambler)

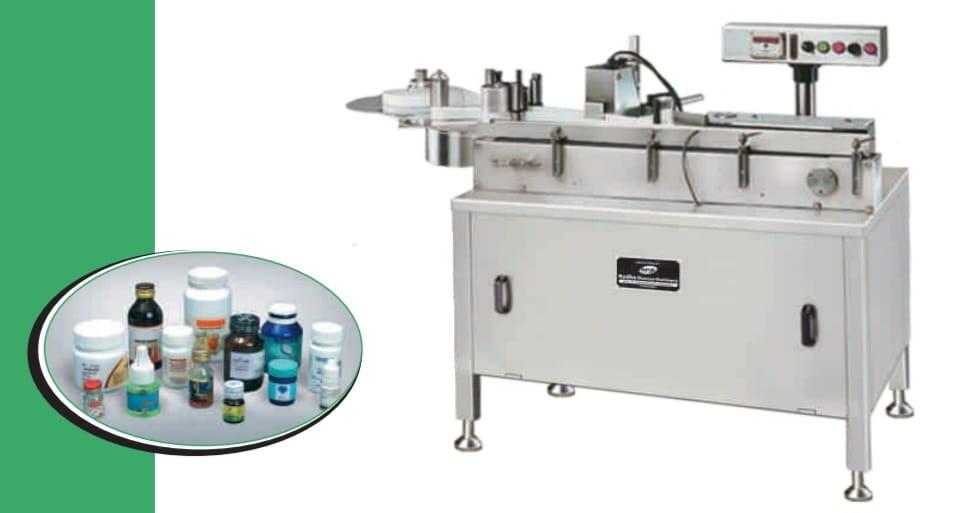

RSL-50 SEMI AUTOMATIC / OFF LINE STICKER LABELING MACHINE - RADHE PHARMA MACHINERY APPLICATION To apply sticker labels on Round, Shape of container. Type of container : Glass, Plastic, Pet, Aluminium TECHNICAL SPECIFICATION Speed : Up to 50 Labels per minute (Speed depends on bottles size and label size) Power : 0.5 H.P. Dimension : 915 mm (L) x 870 mm (W) x 900 mm (H) UNIQUE FEATURES - No change parts for bottle size and label size. - Virtually maintenance free machine. - Complete stainless steel covering. - For Partial, Full, Wrap around and overlap labeling. OPTIONAL - Batch coding machine

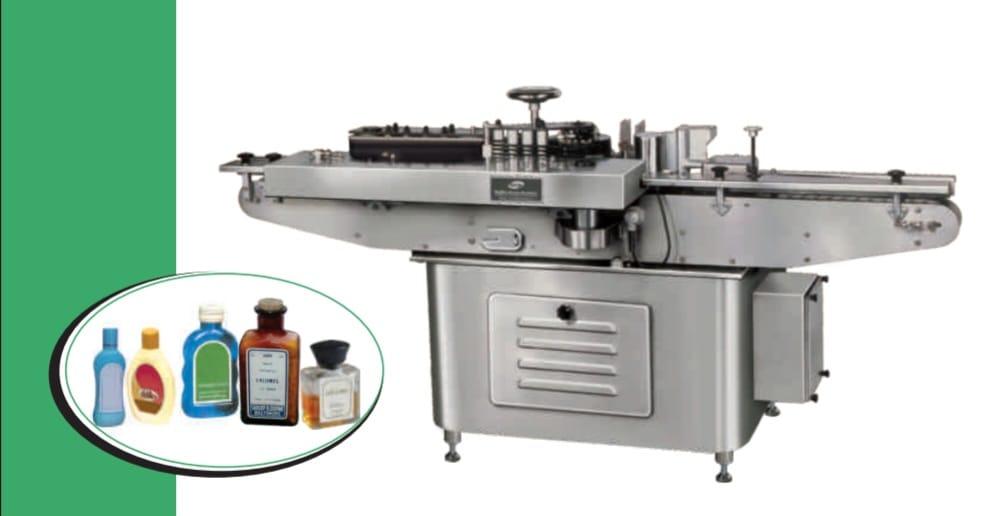

RHL-120 AUTOMATIC WET GLUE TYPE PAPER LABELING MACHINE FOR FLAT, SQUARE BOTTLES - RADHE PHARMA MACHINERY APPLICATION To apply paper labels automatically on flat/square shape of container using cold glue. Type of Container : Glass, Plastic, Pet TECHNICAL SPECIFICATION Speed - Up to 120 containers per minute Power - 1.5 H.P. Dimension - 2250 mm (L) x 1016 mm (W) x 1170 mm (H) UNIQUE FEATURES - Simple and compact in design. - No bottle, No label system to avoid wastage of labels. - Complete stainless steel covering. - A.C. Drive for speed control. OPTIONAL - On line batch coding machine.
