AUTOMATIC MULTI HEAD ROPP/SCREW CAP SEALING MACHINE - RADHE PHARMA MACHINERY

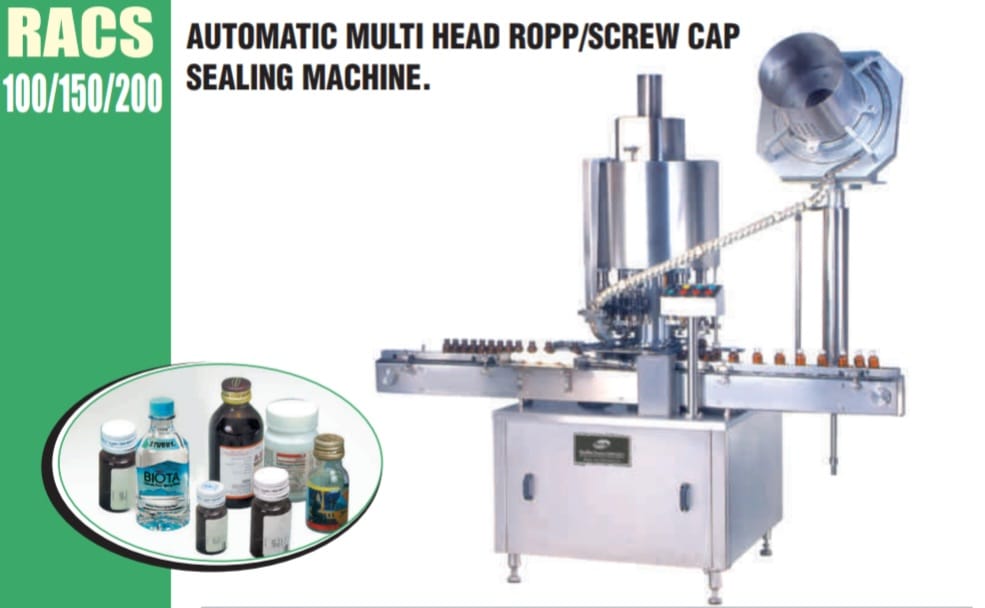

RACS-100/150/200 AUTOMATIC MULTI HEAD ROPP/SCREW CAP SEALING MACHINE - RADHE PHARMA MACHINERY

APPLICATION

Automatic multi head sealing machine with auto cap

feeder for cap sealing / Screw capping of bottles.

OPTIONAL

- No cap machine stop system.

- Acrylic cabinet.

TECHNICAL SPECIFICATION

Model - RACS-100 RACS-150 RACS-200

Speed/Hour - 3600 to 6000 3600 to 9000 4000 to12000

No. of Head - 4 Nos. 6 Nos. 8 Nos.

Power - 1.5 H.P. 1.5 H.P. 2 H.P.

Dimension - 2135 mm(L) x 1200 mm(W) x 2250 mm(H)

UNIQUE FEATURES

- Complete stainless steel covering.

- No bottle, No cap system.

- Adjustable sealing pressure

- A.C. Drive for speed control.

- Single motor synchronizes conveyor, star wheels

- and sealing head for better working of the machine.
