RHL-150 AUTOMATIC WET GLUE TYPE PAPER LABELING MACHINE - RADHE PHARMA MACHINERY APPLICATION To apply paper labels automatically on round shape of container using cold glue. Type of Container : Glass, Pet, Plastics, Aluminium etc. TECHNICAL SPECIFICATION Speed - up to 150 labels per minute Power - 1.5 H.P. Bottle Diameter - 20 mm to 90 mm Label Size - Length : 20 mm to 150 mm Width - 20 mm to 90 mm Dimension : 3010mm (L) X 1016mm (W) X 1170mm (H) UNIQUE FEATURES - Simple and compact in design. - No bottle, No label system to avoid wastage of labels. - Complete stainless steel covering. - Full or partial body labeling. - A.C. Drive for speed control. OPTIONAL - On line batch coding machine - Turn Table

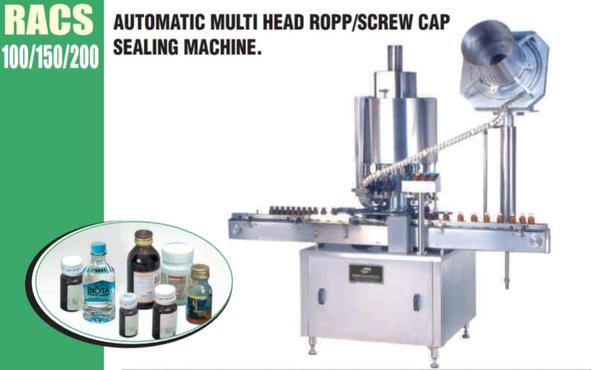

RACS-100/150/200 AUTOMATIC MULTI HEAD ROPP/SCREW CAP SEALING MACHINE - RADHE PHARMA MACHINERY APPLICATION Automatic multi head sealing machine with auto cap feeder for cap sealing / Screw capping of bottles. OPTIONAL - No cap machine stop system. - Acrylic cabinet. TECHNICAL SPECIFICATION Model - RACS-100 RACS-150 RACS-200 Speed/Hour - 3600 to 6000 3600 to 9000 4000 to12000 No. of Head - 4 Nos. 6 Nos. 8 Nos. Power - 1.5 H.P. 1.5 H.P. 2 H.P. Dimension - 2135 mm(L) x 1200 mm(W) x 2250 mm(H) UNIQUE FEATURES - Complete stainless steel covering. - No bottle, No cap system. - Adjustable sealing pressure - A.C. Drive for speed control. - Single motor synchronizes conveyor, star wheels - and sealing head for better working of the machine.

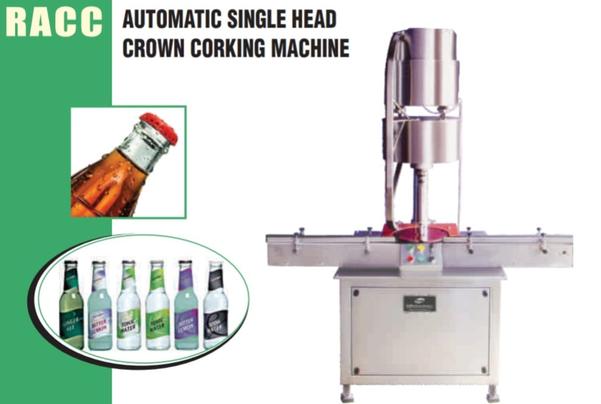

RACC- AUTOMATIC SINGLE HEAD CROWN CORKING MACHINE - RADHE PHARMA MACHINERY APPLICATION Automatic single head crown corking machine with vibratory crown feeder to fix crown on glass bottles. TECHNICAL SPECIFICATION Speed - 1800 to 2400 bottles / hour Power - 1 H.P., 440 volts, 3 phase, 50 Hz. Dimension - 1535 mm (L) x 610 mm (W) x 1400 mm (H) Type of Bottle - Glass

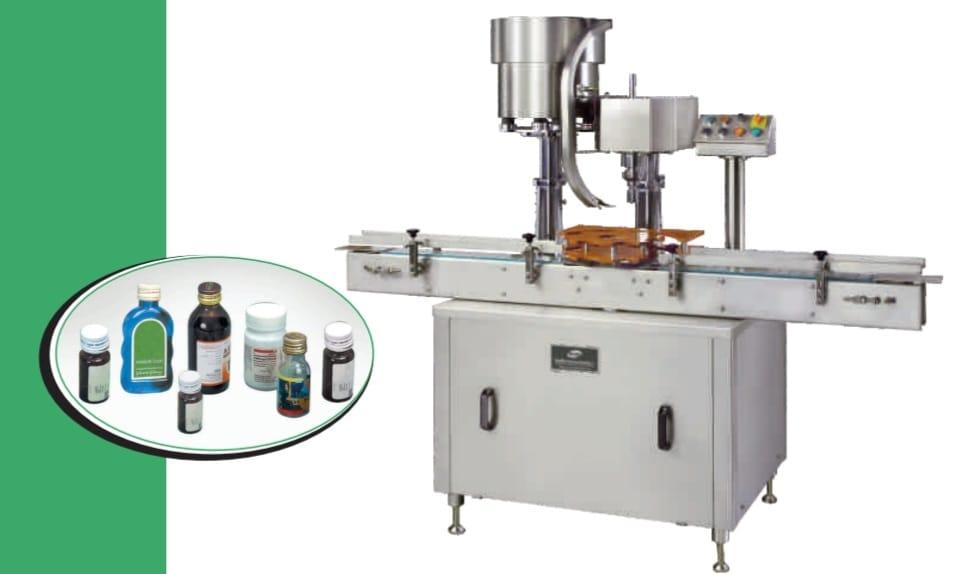

RACS-50 AUTOMATIC SINGLE HEAD ROPP/SCREW CAP SEALING MACHINE - RADHE PHARMA MACHINERY APPLICATION For automatic screw capping / Sealing of bottles using Plastic /Aluminum caps with auto feeder. TECHNICAL SPECIFICATION Speed - 1800 to 2400 bottles / hour. Power - 1 H.P., 440 volts, 3 phase, 50 Hz Dimensions - 1535 mm (L) x 610 mm (W) x 1400 mm (H) UNIQUE FEATURES - No container no cap system. - Adjustable sealing pressure. - Complete stainless steel covering. - Simple and compact in design. - All product contact parts are made up of stainless steel

RALF-100 AUTOMATIC LIQUID FILLING MACHINE - RADHE PHARMA MACHINERY APPLICATION Automatic linear filling machine with advance piston filler system to fill liquid products like Syrup, Juices, Cooking Oil, Liquid Detergent, Lubricating Oil, Honey, Ink in bottles. TECHNICAL SPECIFICATION Filling Range - 1 ml to 2000 ml Speed - 1000 to 6000 Bottles/hour Power - 1.5 H.P. Dimension - 21 35 mm (L) x 1050 mm (W) x 1400 mm (H) UNIQUE FEATURES - No containers machine stop system. - Highly accurate filling machine. - All product contact parts are made up of stainless steel. - Simple and compact in design. - A.C. Drive for speed control.

RSLF-25 SEMI AUTOMATIC FILLING MACHINE - RADHE PHARMA MACHINERY APPLICATION Piston filler machine to pack liquid products like Syrup, Hair Oil, Edible Oil, Liquid Detergent, Ink, Juices, Honey in pouch, bottle or any containers. TECHNICAL SPECIFICATION Filling Range - 1 ml to 1000 ml Speed - 300 to 1200 Fills per hour Dimension - 640 mm(L) x 755 mm(W) x 680 mm(H) Power - 0.5 H.P. UNIQUE FEATURES - Simple in design hence easy to operate and maintain - Highly accurate filling system - All products contact parts are made up of stainless steel. - Complete stainless steel covering

RSCS-25 SEMI AUTOMATIC CAP SEALING MACHINE - RADHE PHARMA MACHINERY APPLICATION For automatic screw capping sealing of bottles using Plastic / Aluminium caps. TECHNICAL SPECIFICATION Speed - Up to 25 bottles per minute. Power - 0.5 H.P. 440 Volts, 3 Phase 50 Hz. Dimension - 600 mm (L) x 600 mm (W) x 1400 mm (H) UNIQUE FEATURES Simple & compact in design. Complete sealing pressure.

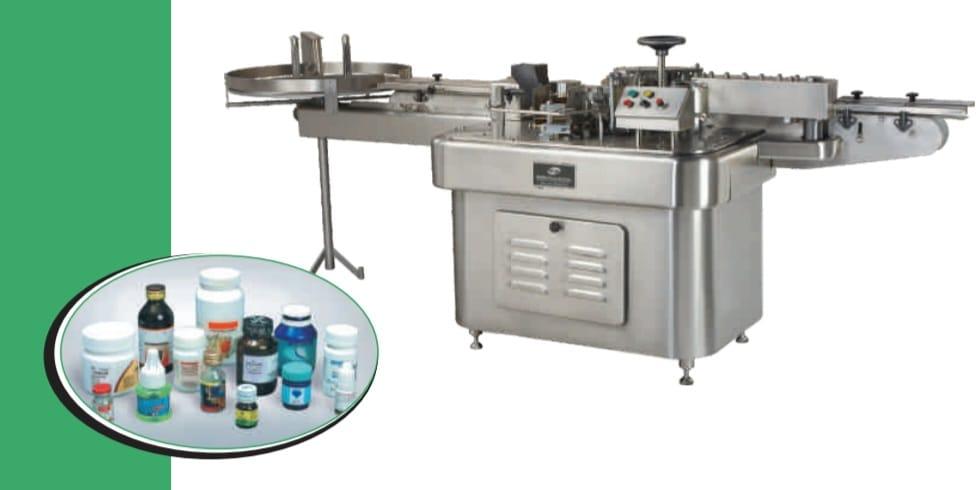

RSL-150 AUTOMATIC STICKER LABELING MACHINE - RADHE PHARMA MACHINERY APPLICATON To apply sticker labels automatically on round shape small bottles and vials. TECHNICAL SPECIFICATION Speed - Up to 150 labels per minute (Depend on product size and label size) Power - 0.5 H.P. Dimension - 2585 mm (L) x 750 mm (W) x 1450 mm (H) Container Size - Ø 22 mm to Ø 100 mm diameter Label Size - Length : 30 mm to 180 mm Width : 16 mm to 90 mm UNIQUE FEATURES - No label data input require for ane label size. - No change par to required. - Virtually maintenance free machine. - Fully stainless steel covering. - A.C. Drive for speed control. - In built digital pulse counter. - Alongwith turn table. OPTIONAL BATCH CODING MACHINE

RGF-25 SEMI AUTOMATIC GRANULE FILLING MACHINE - RADHE PHARMA MACHINERY APPLICATION Semi automatic filling machine with advance volumetric cup filler systems to fill granuls and free flow powder like Tea, Sugar in pouch, Bottle or any containers. TECHNICAL SPECIFICATION Filling Range - 10 gm to 1 Kg. Speed - 600 to 1500 Fills per hour Power - Dimension - UNIQUE FEATURES - Simple in design hence easy to operate and maintain. - All products contact parts are made up of stainless steel. - Telescopic cap filler system for fine taniry of required weight. - Disital counter.

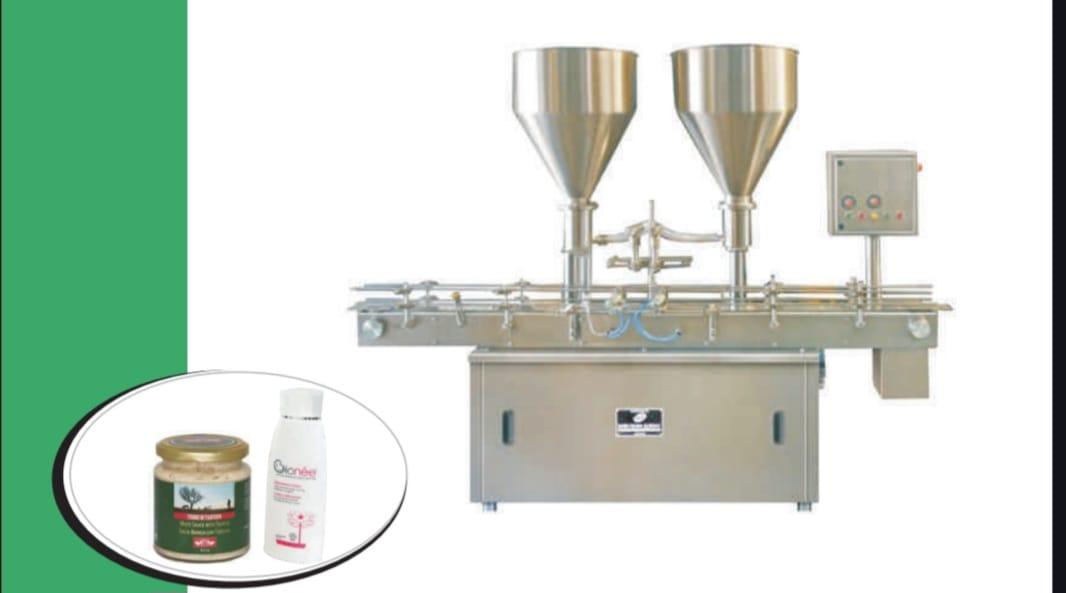

APPLICATION Automatic linear paste filling machine to fill paste type products like Garlic Paste, Onion Paste, Ointment, Catch-ups etc. in bottle or containers TECHNICAL SPECIFICATION Filling Range - 5 ml to 1000 ml Speed - 600 to 1800 Bottles per hour (1 Head) Power - Dimension - 1 or 2 as per requirement. UNIQUE FEATURES - Simple and compact in design. - No bottle - No filling systems. - Highly accurate filling machine. - Complete stainless steel covering. - Turn Table (Optional)

RAGF-50 AUTOMATIC GRANULE FILLING MACHINE - RADHE PHARMA MACHINERY APPLICATION Automatic inner granule filling machine to fill granule and free flow granules like Tea, Sugar & Coffee also for Nuts & Beans etc. In containers. TECHNICAL SPECIFICATION Filling Range - 10 gm to 1 Kg. Speed - 1200 to 2800 Bottle Par Hour (Single Head) No of Filling HeadS - 1 or 2 as per requirement Type of Container - Glass, Plastics, Alluminium etc. Power - Dimension - UNIQUE FEATURES - Simple and compact in design. - Complete stainless steel covering. - Digital pulse counter. - Telescopic cup filler system for fine tuning of required weight.

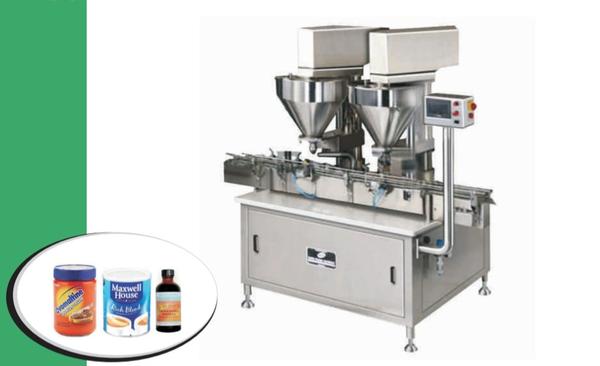

RPF-50 AUTOMATIC POWDER FILLING MACHINE - RADHE PHARMA MACHINERY APPLICATION Automatic linear powder filling machine to fill powder in container. TECHNICAL SPECIFICATION Filling Range - 50 gm to 1000 gm Speed - 600 to 1800 filling per hour (1 Head) Power - Dimension - 1 or 2 as per requirement. UNIQUE FEATURES - Simple and compact in design. - No bottle - No filling system. - Highly accurate filling machine. - S.S. 304 Construction. - PLC Control system. - Servo base system (Optional) - Turn Table. (Optional)
